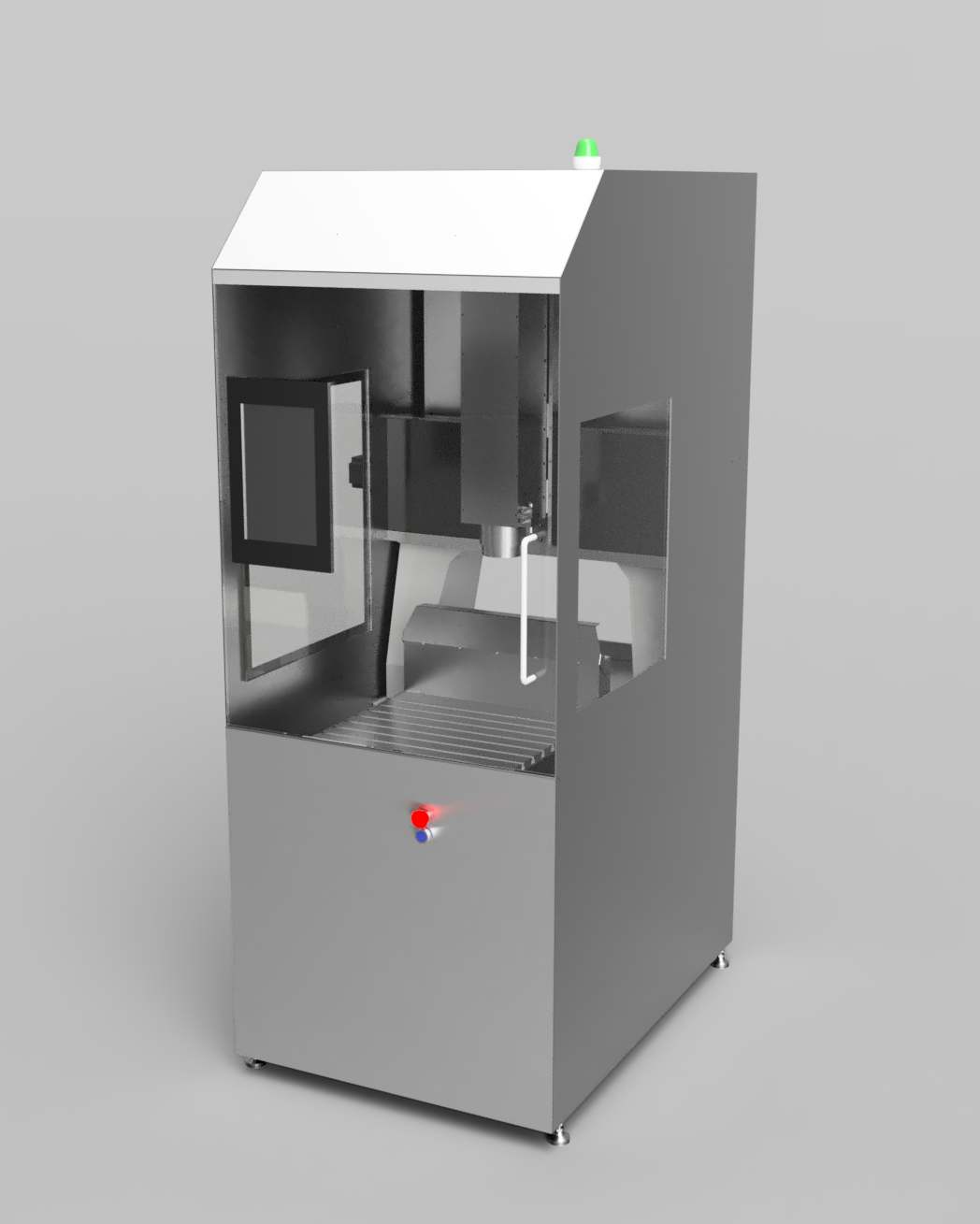

Z2016-000 CNC MILL
Z2016-000 CNC MILL
Regular price
$29,650.00 USD
Regular price
Sale price
$29,650.00 USD
Unit price
/
per
Couldn't load pickup availability
| Specifications | Metric | Imperial |
| X Axis Travel | 508 mm | 20 in |
| Y Axis Travel | 406 mm | 16 in |
| Z Axis Travel | 305 mm | 12 in |
| X Max Speed | 17.8 m/min | 700 ipm |
| Y Max Speed | 17.8 m/min | 700 ipm |
| Z Max Speed | 12.7 m/min | 500 ipm |
| Spindle Power | 3.7 kW | 5 hp |
| Spindle RPMs | 20,000 | 20,000 |
| Max Tool Dia | 51 mm | 2 in |
| Table Size | 508x406 mm | 20x16 in |
| Max Table Load | 136 kg | 300 lbs |
| T Slots | 10 mm | .40 in |
| Resolution | .012 mm | .0005 in |
| Repeatability | .025 mm | .001 in |
| Power Supply | 200-240 VAC 30A, 1 Phase | 200-240 VAC 30A, 1 Phase |
| Weight | 794 kg | 1750 lbs. |
- Tool changer - Holds quantity 7 BT-30 tools
- Wireless connectivity
- Windows 10
- 13.5 in multi touch screen
- USB port
- Motion controller - ethernet
- Servo driven
- Brake - Z Axis
- Linear bearings all 3 axis
- Mineral Cast Frame
- 4 prong twist lock plug - 220VAC 30A 1P
- Footprint(Inches) 36W x 46D x 80H
